Session 10: Object Oriented Programming - Part 2

Date: 16-05-2026 4:00 pm to 6:00 pm

Agenda

1. Review of previous sessions
2. Answers to queries
3. dataclasses.dataclass
4. Filtering and grouping data with Pandas

Object Oriented Programming (contd.)

The SearchDir class created in Session 9 can be simplified using the dataclass decorator from the built-in dataclasses module.

Simplify class definition - dataclass decorator

The primary purpose of __init__() is to initialize data into an instance, and is a good candidate for automation. That is the purpose of dataclasses.dataclass decorator. In addition to providing the __init__() method, the dataclass decorator provides the __str__() and several other dunder methods. The class definition reduces to the following:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

from dataclasses import dataclass
from pathlib import Path


@dataclass
class SerachDir:
    path: str
    pattern: str
    recurse: bool = False

    def linecount(self, fname):
        with open(fname) as f:
            lines = f.readlines()
        return len(lines)

    def search_print(self):
        flist = self.path.rglob(self.pattern) if self.recurse else self.path.glob(self.pattern)
        flist = list(flist)
        if len(flist) == 0:
            print(f"No files matching {self.pattern} found")
            return

        total_lines = 0
        for i, f in enumerate(sorted(flist), 1):
            num_lines = self.linecount(f)
            total_lines += num_lines
            print(f"{f} ({num_lines})")
        print(f"Files: {i}, Total lines: {total_lines}")

if __name__ == "__main__":
    dir = SearchDir(Path("."), "*.py")
    print(dir, "\n")
    dir.search_print()

Note

1. All the data fields are listed along with their data type.
2. Data fields with default values must be listed toward the end. A data field without a default value cannot be listed after a data field having a default value (similar to function parameters).

Command Line Interfaces

Type the following code in a code editor (not in the Python REPL):

1
2
3

import sys

print(sys.argv)

and run it from the command line:

> uv run -- python app.py
['app.py']
> uv run -- python app.py one, two three
['app.py', 'one', 'two', 'three']

> .venv\Scripts\activate
(.venv) > python app.py

$ source .venv/bin/actiivate
(.venv) $ python app.py

Note

1. sys is a built-in module and gives access to several system information.
2. sys.argv returns a list of command line arguments typed at the command line when executing the application.
3. The first argument is the name of the application, in this case, app.py
4. All items in the sys.argv list are of type str. sys.argv[0] is always the name of the application itself.Arguments starting from index 1 can be treated as arguments to the application and interpreted as appropriate.

Let us use sys.argv and assume that the arguments have the following meaning:

1. sys.argv[1] represents the path to be searched, and is a required argument.
2. sys.argv[2] represents the filename pattern to be searched, and is a required argument.
3. sys.argv[3] represents whether to search the path recursively, and is an optional argument, defaulting to "false". User must type true to indicate the search to be recursive.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

import sys

def parse_args(argv):
    if len(argv) < 3:
        sys.exit("Usage: python app.py path pattern [false]")

    if (len(argv) > 3) and argv[3].lower() == 'true':
            recurse = True
    else:
        recurse = False

    return argv[1], argv[2], recurse


if __name__ == "__main__":
    print(sys.argv)
    path, pattern, recurse = parse_args(sys.argv)
    print(f"Path: {path}, Pattern: {pattern}, Recursive search: {recurse}")

Note

1. Filename pattern such as *.py must be enclosed within single or double quotes. Otherwise the command shell expands it to a list of filenames before calling the application.
2. The third argument is case-insensitive becaue we convert it to lowercase before checking its value.
3. Any value other than true is treated as false when evaluating the third command line argument.

Test this with different number of command line arguments:

> uv run -- python app.py
Usage: python app.py path pattern [false]
> uv run -- python app.py .
Usage: python app.py path pattern [false]
> uv run -- python app.py . "*.py"
Path: ., Pattern: .py, Recursive search: False
> uv run -- python app.py . "*.py" true
Path: ., Pattern: .py, Recursive search: True

You can now integrate this with the program, but let us import the SearchDir object from searchdir module and modify app.py to provide command line argument parsing.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19

import sys
from searchdir import SearchDir

def parse_args(argv):
    if len(argv) < 3:
        sys.exit("Usage: python app.py path pattern [false]")

    if (len(argv) > 3) and argv[3].lower() == 'true':
            recurse = True
    else:
        recurse = False

    return argv[1], argv[2], recurse


if __name__ == "__main__":
    path, pattern, recurse = parse_args(sys.argv)
    dir = SearchDir(path, pattern, recurse)
    dir.search_print()

Execute this application as follows:

> uv run -- python app.py . "*.py"
app.py (22)
main.py (10)
searchdir.py (46)
vector.py (37)
vector2.py (41)
Files: 5, Total lines: 156

Python has several libraries for argument parsing, argparse being one of the oldest and very comprehensive but come with a learning curve. There are more recent and simpler packages such as Typer that simplify this process. The following code does the same as the previous version of the program. Study the Typer documentation to learn more, the code below is presented without any explanation.

Remember to install Typer with:

> uv add typer

> pip install typer

Let us rewrite app.py to use typer instead of the parse_args() function. Here is the code:

1
2
3
4
5
6

import typer
from searchdir import SearchDir, main


if __name__ == "__main__":
    typer.run(main)

> uv run -- python app.py

 Usage: app.py [OPTIONS] PATH PATTERN

╭─ Arguments ──────────────────────────────────────────────────────────────────╮
│ *    path         TEXT  [required]                                           │
│ *    pattern      TEXT  [required]                                           │
╰──────────────────────────────────────────────────────────────────────────────╯
╭─ Options ────────────────────────────────────────────────────────────────────╮
│ --recurse    --no-recurse      [default: no-recurse]                         │
│ --help                         Show this message and exit.                   │
╰──────────────────────────────────────────────────────────────────────────────╯
> uv run -- python app.py
Usage: app.py [OPTIONS] PATH PATTERN
Try 'app.py --help' for help.
╭─ Error ──────────────────────────────────────────────────────────────────────╮
│ Missing argument 'PATH'.                                                     │
╰──────────────────────────────────────────────────────────────────────────────╯
> uv run -- python app.py .
Usage: app.py [OPTIONS] PATH PATTERN
Try 'app.py --help' for help.
╭─ Error ──────────────────────────────────────────────────────────────────────╮
│ Missing argument 'PATTERN'.                                                  │
╰──────────────────────────────────────────────────────────────────────────────╯
> uv run -- python app.py . "*.py"
SearchDir(/home/satish/Python/sci, *.py, False)

app.py (12)
app_v1.py (22)
main.py (10)
searchdir.py (46)
vector.py (37)
vector2.py (41)
Files: 6, Total lines: 168
> uv run -- python app.py . "*.py" --recurse
SearchDir(/home/satish/Python/sci, *.py, False)

...
app.py (12)
app_v1.py (22)
main.py (10)
searchdir.py (46)
vector.py (37)
vector2.py (41)
Files: 1759, Total lines: 830435

Pandas (contd.)

Continuing to work with data from sales_data.csv file of Session 9

Filtering Rows

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

>>> df[["customer_name"]]     # Print data in column with the name "customer_name"
0    Alice Johnson
1        Bob Smith
2    Charlie Brown
3    Alice Johnson
4     David Miller
5              NaN
6      Frank White
7        Bob Smith
8        Grace Lee
9        Grace Lee
Name: customer_name, dtype: str
>>> df["customer_name"].unique()     # Print unique values from the column with the name "customer_name"
<ArrowStringArray>
['Alice Johnson',     'Bob Smith', 'Charlie Brown',  'David Miller',
             nan,   'Frank White',     'Grace Lee']
Length: 7, dtype: str
>>> df[df["category"] == "Electronics"]
   order_id  order_date  customer_name     category     product  quantity  unit_price region
0      1001  2023-01-15  Alice Johnson  Electronics  Headphones         1        50.0  North
2      1003  2023-01-17  Charlie Brown  Electronics   USB Cable         3        15.0  North
6      1007  2023-01-21    Frank White  Electronics  Smartphone         1       600.0  South
>>> df['total_sales'] = df['quantity'] * df['unit_price']
>>> df
   order_id  order_date  customer_name     category       product  quantity  unit_price region  total_sales
0      1001  2023-01-15  Alice Johnson  Electronics    Headphones         1        50.0  North         50.0
1      1002  2023-01-16      Bob Smith    Furniture  Office Chair         2       120.0  South        240.0
2      1003  2023-01-17  Charlie Brown  Electronics     USB Cable         3        15.0  North         45.0
3      1004  2023-01-18  Alice Johnson    Furniture     Desk Lamp         1        35.0  North         35.0
4      1005  2023-01-19   David Miller     Clothing       T-Shirt         5        20.0   East        100.0
5      1006  2023-01-20            NaN     Clothing        Hoodie         2        45.0   West         90.0
6      1007  2023-01-21    Frank White  Electronics    Smartphone         1       600.0  South        600.0
7      1008  2023-01-22      Bob Smith     Clothing       T-Shirt         3        20.0  South         60.0
8      1009  2023-01-23      Grace Lee    Furniture     Bookshelf         1       150.0   East        150.0
9      1010  2023-01-23      Grace Lee    Furniture     Bookshelf         1       150.0   East        150.0

Note

1. Line 1: Print the column with the name customer_name. Note the double square brackets, they are required when selecting more than one column but not required when selecting only one column.
2. Line 13: Print unique values in the column with the name customer_name.
3. Line 18: Filter the rows based on whether the value in the column category is Electronics.
4. Line 23: Create a new column named total_sales with the value of each row calculated by multiplying quantity by unit_price.

Grouping Values

1
2
3
4
5
6
7

>>> category_revenue = df.groupby('category')['total_sales'].sum()
>>> category_revenue
category
Clothing       250.0
Electronics    695.0
Furniture      575.0
Name: total_sales, dtype: float64

Note

1. A new DataFrame category_revenue is created by grouping the data by cateory.
2. Select the total_sales column.
3. Find the sum for each unique category.

Handling Missing Values

Handling missing values is an important step in data cleaning. In the example data above, the value in column customer_name in row index 5 is missing. Depending on what is the objective of the cleaning operation one of several operations could be performed:

1. The entire row could be deleted.
2. The missing value coule be replaced with Unknown or some similar term.

The code below shows the second option:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

>>> print(df.isnull().sum()) # Shows how many empty cells are in each column
order_id         0
order_date       0
customer_name    1
category         0
product          0
quantity         0
unit_price       0
region           0
total_sales      0
dtype: int64
>>> df['customer_name'] = df['customer_name'].fillna('Unknown')
>>> df
   order_id  order_date  customer_name     category       product  quantity  unit_price region  total_sales
0      1001  2023-01-15  Alice Johnson  Electronics    Headphones         1        50.0  North         50.0
1      1002  2023-01-16      Bob Smith    Furniture  Office Chair         2       120.0  South        240.0
2      1003  2023-01-17  Charlie Brown  Electronics     USB Cable         3        15.0  North         45.0
3      1004  2023-01-18  Alice Johnson    Furniture     Desk Lamp         1        35.0  North         35.0
4      1005  2023-01-19   David Miller     Clothing       T-Shirt         5        20.0   East        100.0
5      1006  2023-01-20        Unknown     Clothing        Hoodie         2        45.0   West         90.0
6      1007  2023-01-21    Frank White  Electronics    Smartphone         1       600.0  South        600.0
7      1008  2023-01-22      Bob Smith     Clothing       T-Shirt         3        20.0  South         60.0
8      1009  2023-01-23      Grace Lee    Furniture     Bookshelf         1       150.0   East        150.0
9      1010  2023-01-23      Grace Lee    Furniture     Bookshelf         1       150.0   East        150.0

1. Line 1: df.isnull() returns a DataFrame with the same shape as df but with values equal to True where the value in df is Null and False otherwise. The sum() of each column returns the sum of the values in the column considering True as 1 and False as 0.
2. Line 5: Only one value is missing in the column customer_name.
3. Line 12: Select column customer_name and fill any missing values with the value Unknown.
4. Line 20: The missing value previously shown as NaN is now shown as Unnown.

Example - Grouping of foundation reactions

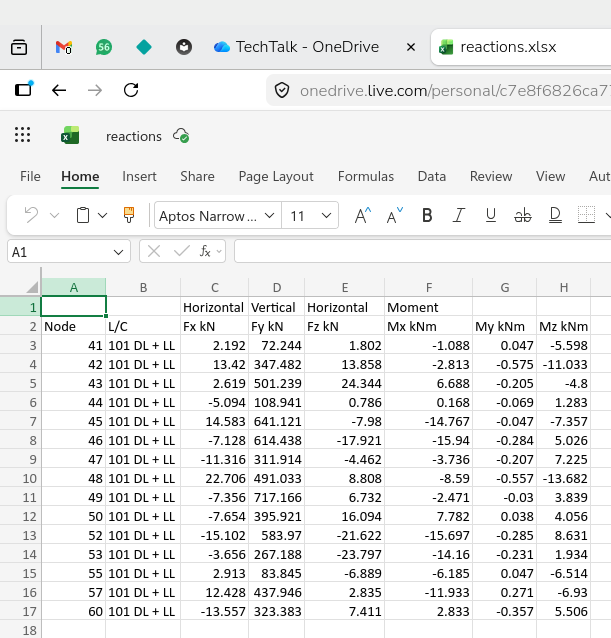

The reactions from a STAAD.Pro analysis can be exported to Microsoft Excel format. This data can be read into a DataFrame and the data processed using Pandas. Here are the reactions when viewed in Microsoft Excel.

Download reactions.xlsx

Note

1. There are two header lines. By default, Pandas assumes the first row in the file to be column names.
2. The second line is treated as the first row of the DataFrame. To remedy this:
   1. Store the first row (row index 0) as column names,
   2. Clean the column names by removing kN and kNm,
   3. Discard the first row of the DataFrame, and
   4. Rename the row numbers starting from 0.
   5. Rename the columns from the stored values from first row.

For example:

1. Determine the minimum and maximum reactions.
2. Classify reactions into groups based on dividing the interval between maximum and minimum reactions into a specified number of equal class intervals.
3. Given the SBC, detemine the size of the isolated footing for the most severely loaded footing in each group.

> uv add openpyxl

> pip install openpyxl

Code

Let us write two functions:

1. read_staad_reactions(fname: str) -> pd.DataFrame to read data from an .xlsx file, clean up the rows to assign column names, reset the row index and set the data type for the data in columns pertaining to reaction components.
2. group_staad_reactions(df: pd.DataFrame, bins: int=5) -> pd.DataFrame to group the data into bins and assign names to each group.
3. main() to set up the filename, call the first function to read and clean up the data and the second function to group the data. Finally, the grouped data is saved to a Microsoft Excel .xlsx file.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21

from pathlib import Path

import numpy as np
import pandas as pd


def read_staad_reactions(fname: str) -> pd.DataFrame:
    df = pd.read_excel(fname)

    # Clean up the column names
    col_names = df.iloc[0]    # Current row index 0 should be the names of columns
    col_names = col_names.str.replace(" kNm", "")  # Replace kNm from column names
    col_names = col_names.str.replace(" kN", "")   # Replace kN from column names
    df = df.iloc[1:].reset_index(drop=True)  # Drop the first row, reindex remaining rows
    df.columns = col_names  # Set new column names using saved values

    # Set dtype of column names and selected columns
    df.columns = df.columns.map(str)  # Set dtype of column names to str
    cols = ["Fx", "Fy", "Fz", "Mx", "My", "Mz"]  # Select column names
    df[cols] = df[cols].astype("float64")  # Set dtype of selected columns to float64
    return df

1. Lines 11-15: Clean up columns names
2. Lines 18-20: Set dtype of column names to str and of columns Fx, Fy, Fz, Mx, My, Mz to float64.
3. Line 21: Return the cleaned DataFrame.

22
23
24
25
26
27
28
29
30
31

# Lines 1 to 21 not shown here
def group_staad_reactions(df: pd.DataFrame, bins: int=5) -> pd.DataFrame:
    df["Ecc_x"] = df["Mx"] / df["Fy"]  # Eccentricity
    df["Ecc_z"] = df["Mz"] / df["Fy"]  # Eccentricity

    custom_labels = [f"F{i:02}" for i in range(1, bins+1)]
    df['footing_type'] = pd.cut(df['Fy'], bins=bins, labels=custom_labels, include_lowest=True)
    df_sorted = df.sort_values(["footing_type", "Fy"])

    return df_sorted

1. Lines 24-25: Calculate eccentricity in (metres) about x and y axes.
2. Line 27: Create a list with custom labels to be used for each bin.
3. Line 28: Create a new column footing_type and populate it with custom labels after cutting the range of values in column Fy into 10 equal sized bins. This new column is populated with the custom_labels based on the interval to which the value in Fy belongs. Note: The number of items in custom_labels must be equal to the number of bins.
4. Line 29: Sort the values on the DataFrame based on values in footing_type and additionally by Fy in case there are more than one row with the same value for footing_type.
5. Line 31: Return the grouped and sorted DataFrame.

We are now ready to write the main() function:

32
33
34
35
36
37
38
39
40
41
42
43

# Lines 1-32 not shown
def main(fname: str):
    df = read_staad_reactions(fname)
    df = group_staad_reactions(df)
    print(df)

    # Set up output filename by adding _grouped to the input filename
    p = Path(fname)
    fout = p.with_stem(f"{p.stem}_grouped")

    # Save the cleaned, grouped, sorted DataFrame to .xlsx format
    df.to_excel(fout, index=False)

Note

1. Line 34: Call group_staad_reactions() to read the data, clean and set the column names, set the dtypes
2. Line 35: Split into 5 bins by splitting the range of values in column Fy and assign custom labels,
3. Line 36: Display the contents of the DataFrame.
4. Line 38-40: Set the name of the output file.
5. Line 43: Save the grouped, sorted DataFrame to output file.

We are now ready to set up the initial values and call main():

40
41
42
43

# Lines 1-40 not shown
if __name__ == "__main__":
    fname = "reactions.xlsx"
    main(fname)

Note

1. Line 41: Use if __name__ == "__main__" to specify the lines to execute when the file is called directly as the __main__ file and to ignore when the file is imported as a module.
2. Line 42: Set the input filename as fname = reactions.xlsx. If this application is converted to a CLI application, this can come from the command line argument.
3. Line 43: Invoke main() and execute the program if called directly.

Recap

This session covered or mentioned several topics that are not the main topics of discussion. They are listed here as a reminder to study their documentation in detail for future use:

1. The online free book Think Python, 3ed., Allen B. Downey is an excellent resource for beginners and experts alike. It is worthwhile digging deep into this book.
2. The pathlib built-in package is a comprehensive library for manipulating files paths, files and directories. It is extremely useful when automating tasks that use the file system.
3. The dataclasses built-in module provides the dataclass decorator that simplifies implementing classes.
4. The sys built-in module gives access the the system information.
5. The typer external package is an excellent tool to build CLI applications.
6. The pydantic package is a replacement for dataclass and is part of other packages such as FastAPI and SQLModel that you may find useful in the future.

The Pandas package is gigantic and we have not even scratched the surface. Pandas has stiff competition from Polars which is worth exploring. Narwhals may help you use either of them and quickly switch from one to the other without having to rewrite your code.
