Section Properties

Task 6 defined two problems, the first of which required the geometric properties of sections as per SP:6 (1)-1964.

It was suggested to use the sectionproperties package for the calculations. Let us do the following:

1. Install sectionproperties package from PyPI.
2. Study the documentation to create an I-section and calculate its geometric properties.
3. Try out the commands from Python REPL.
4. Develop a class to perform the specified tasks.
5. Develop a function to read data froma CSVV/Excel file and use the class to calculate geometric properties of sections listed therein.
6. Develop a CLI application to use the function.

Install sectionproperties

> uv add sectionproperties
> uv run -- python -c "import sectionproperties"

> .venv\Scripts\activate
(.venv) > pip install sectionproperties
(.venv) > python -c "import sectionproperties"

> source .venv/bin/activate
(.venv) > pip install sectionproperties
(.venv) > python -c "import sectionproperties"

Application Development

sectionproperties Documentation

Exploring the sectionproperties documentation showed that the steps to calculating geometric properties of a section require the following steps:

1. Create a geometry.
2. Create a mesh for the geometry.
3. Create a section (sectionproperties.analysis.Section) from the geometry.
4. Calculate geometric propertiesof the section.
5. There is a pre-defined library of functions to create standard geometris and the one that is appropriate for steel cross sections as per SP:6 (1)-1964 are tapered_flange_i_section() for I sections and tapered_flange-channel for channel sections.

Try sectionproperties in Python REPL

Open Python REPL or (IPython REPL inside Spyder IDE), note down the size of ISMB 300 from SP:6 (1)-1964 and try the following:

>>> from sectionproperties.pre.library import tapered_flange_i_section
>>> from sectionproperties.analysis import Section
>>> geom = tapered_flange_i_section(d=300, b=140, t_f=12.4, t_w=7.5, r_r=14.0, r_f=7.0, alpha=8, n_r=16)
>>> geom.create_mesh(mesh_sizes=0)
<sectionproperties.pre.geometry.Geometry object at 0x000001E97ECEAF90>

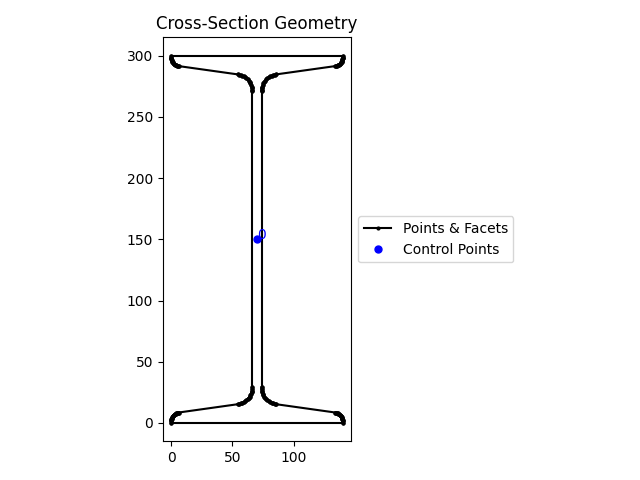

>>> geom.plot_geometry()
>>> sec = Section(geometry=geom)
>>> sec.calculate_geometric_properties()
>>> sec.display_results()
     Section Properties
┏━━━━━━━━━━━┳━━━━━━━━━━━━━━┓
┃ Property  ┃        Value ┃
┡━━━━━━━━━━━╇━━━━━━━━━━━━━━┩
│ area      │ 5.626648e+03 │
│ perimeter │ 1.084520e+03 │
│ qx        │ 8.439972e+05 │
│ qy        │ 3.938654e+05 │
│ ixx_g     │ 2.126448e+08 │
│ iyy_g     │ 3.210956e+07 │
│ ixy_g     │ 5.907981e+07 │
│ cx        │ 7.000000e+01 │
│ cy        │ 1.500000e+02 │
│ ixx_c     │ 8.604526e+07 │
│ iyy_c     │ 4.538987e+06 │
│ ixy_c     │ 2.235174e-08 │
│ zxx+      │ 5.736351e+05 │
│ zxx-      │ 5.736351e+05 │
│ zyy+      │ 6.484268e+04 │
│ zyy-      │ 6.484268e+04 │
│ rx        │ 1.236627e+02 │
│ ry        │ 2.840237e+01 │
│ i11_c     │ 8.604526e+07 │
│ i22_c     │ 4.538987e+06 │
│ phi       │ 0.000000e+00 │
│ z11+      │ 5.736351e+05 │
│ z11-      │ 5.736351e+05 │
│ z22+      │ 6.484268e+04 │
│ z22-      │ 6.484268e+04 │
│ r11       │ 1.236627e+02 │
│ r22       │ 2.840237e+01 │
└───────────┴──────────────┘

>>> sec.get_area()
np.float64(5626.648100857684)
>>> sec.get_ic()
(np.float64(86045259.31526682), np.float64(4538987.412026007), np.float64(2.2351741790771484e-08))
>>> sec.get_z()
(np.float64(573635.0621017787), np.float64(573635.0621017789), np.float64(64842.67731465717), np.float64(64842.6773146573))
>>> sec.get_rc()
(np.float64(123.66266358883864), np.float64(28.40237203783421))

The area of cross section as per SP:6 (1)-1964 is \(56.26 \text{cm}^2\) whereas the area as calculated by sectionproperties is \(5626.648100857684 \text{mm}^2 = 56.27 \text{cm}^2\), an error 0f \(0.01 \text{cm}^2\) with respect to the value in SP:6 (1)-1964.

Class and Application

Now that we know how sectionproperties is to be used to calculate geometric properties, let us create a class to store the properties of an I section and provide methods to perform the required tasks. Let us use dataclasses.dataclass to simplify the creation of the class.

Name of class: class ISection

Object initialisation parameters:

1. Depth of the tapered flange I section d - \(h\) in SP:6 (1)-1964
2. Width of the tapered flange I section b - \(b\) in SP:6 (1)-1964
3. Mid-flange thickness of the tapered flange I section (measured at the point equidistant from the face of the web to the edge of the flange) t_f - \(t_f\) in SP:6 (1)-1964
4. Web thickness of the tapered flange I section t_w - \(t_w\) in SP:6 (1)-1964
5. Root radius of the tapered flange I section r_r - \(r_1\) in SP:6 (1)-1964
6. Flange radius of the tapered flange I section r_f - \(r_2\) in SP:6 (1)-1964
7. Flange angle of the tapered flange I section in degrees alpha - Slope of flange \(D - 90\) degrees in SP:6 (1)-1964
8. Number of points discretising the radii n_r to be chosen by the user

Methods:

1. Plot geometry plot_geometry()
2. Display geometric properties display_geometric_properties()

Properties

1. Area area
2. Second moment of area about centroidal axes Ixx, Iyy
3. Section modulus about centroidal axes Zxx, Zyy
4. Radius of gyration about centroidal axes rxx, ryy

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67

from dataclasses import dataclass

from sectionproperties.pre.library import tapered_flange_i_section
from sectionproperties.analysis import Section


@dataclass
class ISection:
    d: float
    b: float
    t_f: float
    t_w: float
    r_r: float
    r_f: float
    alpha: float
    n_r: int = 16

    def __post_init__(self):
        self.geom = tapered_flange_i_section(d=self.d, b=self.b, t_f=self.t_f, t_w=self.t_w, r_r=self.r_r, r_f=self.r_f, alpha=self.alpha, n_r=self.n_r)
        self.geom.create_mesh(mesh_sizes=0)
        self.sec = Section(geometry=self.geom)
        self.sec.calculate_geometric_properties()

    def display_geometric_properties(self):
        self.sec.display_results()

    def plot_geometry(self):
        self.geom.plot_geometry()

    @property
    def area(self):
        return self.sec.get_area()

    @property
    def Ixx(self):
        return self.sec.get_ic()[0]

    @property
    def Iyy(self):
        return self.sec.get_ic()[1]

    @property
    def Zxx(self):
        return self.sec.get_z()[0]

    @property
    def Zyy(self):
        return self.sec.get_z()[2]

    @property
    def rxx(self):
        return self.sec.get_rc()[0]

    @property
    def ryy(self):
        return self.sec.get_rc()[1]


if __name__ == "__main__":
    ISMB300 = ISection(d=300, b=140, t_f=12.4, t_w=7.5, r_r=14.0, r_f=7.0, alpha=8, n_r=32)
    print(f"A = {ISMB300.area / 1e2:.2f} cm^2")
    print(f"Ixx = {ISMB300.Ixx / 1e4:.1f} cm^4")
    print(f"Iyy = {ISMB300.Iyy / 1e4:.1f} cm^4")
    print(f"Zxx = {ISMB300.Zxx / 1e3:.1f} cm^3")
    print(f"Zyy = {ISMB300.Zyy / 1e3:.1f} cm^3")
    print(f"rxx = {ISMB300.rxx / 10:.2f} cm")
    print(f"ryy = {ISMB300.ryy / 10:.2f} cm")

The output is very close or identical to the values in SP:6 (1)-1964 and is shown below:

A = 56.27 cm^2
Ixx = 8604.3 cm^4
Iyy = 453.9 cm^4
Zxx = 573.6 cm^3
Zyy = 64.8 cm^3
rxx = 12.37 cm
ryy = 2.84 cm

Note

1. The dataclass automatically generates the __init__() magc method based on the fields listed. In a dataclass definition, specifying the datatype of the fields is required, not optional. The dtaclass generates other magic methods such as __str__(), comparison operators __eq__() etc.
2. The magic method __post_init__(self) is invoked automatically immediately after the object is initialized and gives an opportunity to the prorgammer to do post initialization steps if any. This method is necessary because to customize the initialization step.
3. In this example, the __post_init__() magic method automatically creates the geometry and the section using the fields in the initialized object. This would not be done by the __init__() method generated by dataclass and we would have to write a method to implement this step and remember to call it before requesting for geometric properties.
4. The @property decorator available through the dataclass allows us to write a getter, that is, a way to get a value from inside the object. Not having to write a getter function with the trailing parentheses () makes the method appear like a property.

Processing a set of sections

Now that the class is working as expected for one section, it is time to think of reading section dimensions of a set of sections and process them one at a time using the class created previously. Following i sthe data taken from SP:6(1)-1964 for three different I sections, which can be created using a text editor or using Excel (but remembering to "Save as"" to CSV format):

1
2
3
4

designation,h,b,tf,tw,r1,r2,D
"ISLB 300",300,150,9.4,6.7,15.0,7.5,98
"ISMB 300",300,140,12.4,7.5,14.0,7.0,98
"ISMB 450",450,150,17.4,9.4,15.0,7.5,98

Note

1. Line 1 is the header and contains the names of the columns. If a column name contains one or more spaces, it is best to enclose the name within double quotes ".
2. Column names are as per the nomenclature in SP:6 (1)-1964.
3. On each row, the first column is the section designation and is enclosed within double quotes as it contains a space. The other columns are all numbers and must not be enclosed in double quotes. Columns are separated by a comma ,.

Let us read the data from this file and display it in the Python REPL (or Spyder IDE Ipython console):

>>> import pandas as pd
>>> df = pd.read_csv("isections.csv")
>>> df.head()
  designation    h    b    tf   tw    r1   r2   D
0    ISLB 300  300  150   9.4  6.7  15.0  7.5  98
1    ISMB 300  300  140  12.4  7.5  14.0  7.0  98
2    ISMB 450  450  150  17.4  9.4  15.0  7.5  98
>>> df.dtypes
designation        str
h                int64
b                int64
tf             float64
tw             float64
r1             float64
r2             float64
D                int64
dtype: object
>>> for idx, row in df.iterrows():
...     print(row['h'], row['b'], row['tf'], row['tw'], row['r1'], row['r2'], row['D'])
...
300 150 9.4 6.7 15.0 7.5 98
300 140 12.4 7.5 14.0 7.0 98
450 150 17.4 9.4 15.0 7.5 98
>>> for idx, row in df.iterrows():
...     print(row.to_dict())
...
{'designation': 'ISLB 300', 'h': 300, 'b': 150, 'tf': 9.4, 'tw': 6.7, 'r1': 15.0, 'r2': 7.5, 'D': 98}
{'designation': 'ISMB 300', 'h': 300, 'b': 140, 'tf': 12.4, 'tw': 7.5, 'r1': 14.0, 'r2': 7.0, 'D': 98}
{'designation': 'ISMB 450', 'h': 450, 'b': 150, 'tf': 17.4, 'tw': 9.4, 'r1': 15.0, 'r2': 7.5, 'D': 98}

1. For each row, df.iterrows() returns a tuple with two objects:
   1. the first is the row index which we store in idx
   2. the sectiond is the row returned in a pandas.Series object
2. row.to_dict() converts the pandas.Series object into a dictionary with the column names as the keys.

We must change the names of the columns of the DataFrame to match the input arguments to tapered_flange_i_section(). Further, the input argument alpha is obtained by subtracting 90 degrees from the values in column D. Subsequently the column D can be deleted as it is no longer required.

>>> df = df.rename(columns={"h": "d", "tf": "t_f", "tw": "t_w", "r1": "r_r", "r2": "r_f"})
>>> df
  designation    d    b   t_f  t_w   r_r  r_f   D
0    ISLB 300  300  150   9.4  6.7  15.0  7.5  98
1    ISMB 300  300  140  12.4  7.5  14.0  7.0  98
2    ISMB 450  450  150  17.4  9.4  15.0  7.5  98
>>> df["alpha"] = df["D"] - 90
>>> df.head()
  designation    d    b   t_f  t_w   r_r  r_f   D  alpha
0    ISLB 300  300  150   9.4  6.7  15.0  7.5  98      8
1    ISMB 300  300  140  12.4  7.5  14.0  7.0  98      8
2    ISMB 450  450  150  17.4  9.4  15.0  7.5  98      8
>>> df = df.drop(columns=["D"])
>>> df.head()
  designation    d    b   t_f  t_w   r_r  r_f  alpha
0    ISLB 300  300  150   9.4  6.7  15.0  7.5      8
1    ISMB 300  300  140  12.4  7.5  14.0  7.0      8
2    ISMB 450  450  150  17.4  9.4  15.0  7.5      8
>>> df.iloc[0, 1:8].to_dict()
{'d': 300, 'b': 150, 't_f': 9.4, 't_w': 6.7, 'r_r': 15.0, 'r_f': 7.5, 'alpha': 8}
>>> for idx, row in df.iterrows():
...     print(row.iloc[1:8].to_dict())
...
{'d': 300, 'b': 150, 't_f': 9.4, 't_w': 6.7, 'r_r': 15.0, 'r_f': 7.5, 'alpha': 8}
{'d': 300, 'b': 140, 't_f': 12.4, 't_w': 7.5, 'r_r': 14.0, 'r_f': 7.0, 'alpha': 8}
{'d': 450, 'b': 150, 't_f': 17.4, 't_w': 9.4, 'r_r': 15.0, 'r_f': 7.5, 'alpha': 8}

1. df.iloc[0, 1:8] select row index 0 and lets us index columns by numbers (first column is 0) instead of by names. In this example, we are fetching row index 0 and column indices 1 to 7 (8 not included as per slicing logic). This returns a pandas.Series.
2. .to_dict() convrts the pandas.Series to a dict.

Data is now ready to create a ISection object using the data from each row:

>>> sec = ISection(**df.iloc[0, 1:8].to_dict())
>>> sec.area
np.float64(4810.419826483751)
>>> for idx, row in df.iterrows():
...     sec = ISection(**row.iloc[1:8].to_dict())
...     print(row["designation"], sec.area)
...
ISLB 300 4810.419826483751
ISMB 300 5627.014726939055
ISMB 450 9227.361191639227

1. row is an object of type pandas.Series.
2. row.iloc[1:8] returns the columns 1 to 7 as a Series.
3. row.iloc[1:8].to_dict() converts these seven columns of the row into a dict.
4. **row.iloc[1:8].to_dict() unpacks the dict into individual keyword arguments ready to be used in creating an object of type ISection.

Cross checking the areas of the sections shows us that things are working as expected. Let us write the following functions:

1. clean_data(df: pd.DataFrame) -> pd.dataFrame that takes a DataFrame as its input and carries out the following operations:
   1. Renames the columns,
   2. Calculates the column alpha,
   3. Drops the column D that is no longer required, and
   4. Returns the cleaned DataFrame.
2. main() that takes the filename from which to read data, cleans the data usin clean_data() and processes each line one at a time using ISection.

clean_data() and main() Functions

We are now ready to write the clean_data() and main() functions:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19

import pandas as pd
from secprop import ISection

def clean_data(df: pd.DataFrame) -> pd.DataFrame:
    df = df.rename(columns={"h": "d", "tf": "t_f", "tw": "t_w", "r1": "r_r", "r2": "r_f"})
    df["alpha"] = df["D"] - 90
    df = df.drop(columns=["D"])
    return df

def main(filename: str):
    df = pd.read_csv(filename)
    df = clean_data(df)
    for idx, row in df.iterrows():
        sec = ISection(**row.iloc[1:8].to_dict())
        print(row["designation"], sec.area / 100)


if __name__ == "__main__":
    main("isections.csv")

Run the application from the command line:

>>> uv run -- python secprop_app.py

This should produce the output:

ISLB 300 48.104198264837514
ISMB 300 56.270147269390556
ISMB 450 92.27361191639227

CLI Application

To convert this application to a CLI application, change the line main("isections.csv") to #py typer.run(main) and we are ready to go.

17
18
19

# Lines above not shown
if __name__ == "__main__":
    typer.run(main)

Now test to verify that the CLI application displays help with the following command:

    > uv run -- python secprop_app.py --help

> .venv\Scripts\activate
(.venv) > python secprop_app.py

> source .venv/bin/activate
(.venv) > python secprop_app.py

This should display the following output:

 Usage: secprop_app.py [OPTIONS] FILENAME

╭─ Arguments ────────────────────────────────────────────────────────────────────────────────────────────╮
│ *    filename      TEXT  [required]                                                                    │
╰────────────────────────────────────────────────────────────────────────────────────────────────────────╯
╭─ Options ──────────────────────────────────────────────────────────────────────────────────────────────╮
│ --help                Show this message and exit.                                                      │
╰────────────────────────────────────────────────────────────────────────────────────────────────────────╯

Try the CLI application with the following commands:

> uv run -- python secprop_app.py isections.csv

> .venv\Scripts\activate
(.venv) > python secprop_app.py isections.csv

> source .venv/bin/activate
(.venv) > python secprop_app.py isections.csv

Note: This command must display the results on the screen.

Remaining Tasks

Following changes can be made to the application:

1. Check that the input file exists before attempting to read it. Raise FileNotFoundError exception if not found. Use pathlib.Path for this purpose.
2. If the file exists, check the filename suffix and depending on whether it is .csv or .xlsx or .xls, read the file with pandas.read_csv() or pandas.read_excel().
3. Create additional columns in the DataFrame for the geometric properties and populate the rows with the calculated values, after converting to the same units as in SP:6(1)-1964.
4. Modify the main() function to take a second optional parameter output and when provided, take it to be the name of the file to which the section dimensions along with the calculated properties are to be written. If this parameter is not given, display the results to the screen.
5. Check if the output filename exists and raise FileExistsError exception and do not overwrite the existing file. If it does not exist, use pandas.to_csv() or pandas.to_excel() depending on the output filename suffix, to save the data to a file.

Finished CLI Application

Here is the full CLI application for your refernce:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86

from pathlib import Path

import csv
import pandas as pd
from secprop import ISection
import typer


def clean_data(isec: pd.DataFrame):
    # Calculate the column 'alpha'
    isec["alpha"] = isec["D"] - 90
    # Drop the column 'D'
    isec = isec.drop(columns=["D"])
    # Set n_r = 32 for all rows
    isec["n_r"] = 32
    # Rename columns
    isec = isec.rename(columns={"h": "d", "tf": "t_f", "tw": "t_w", "r1": "r_r", "r2": "r_f"})

    # Create new columns and populate with float 0.0
    isec[["area", "Ixx", "Iyy", "Zxx", "Zyy", "rxx", "ryy"]] = 0.0
    return isec

def process_data(df: pd.DataFrame) -> pd.DataFrame:
    for idx, row in df.iterrows():
        sec_prop = row.iloc[1:8]
        beam = ISection(**sec_prop)
        # print(row["designation"], beam.area, beam.Ixx, beam.Iyy, beam.Zxx, beam.Zyy, beam.rxx, beam.ryy)
        df.loc[idx, "area"] = beam.area / 100
        df.loc[idx, "Ixx"] = beam.Ixx / 1e4
        df.loc[idx, "Iyy"] = beam.Iyy / 1e4
        df.loc[idx, "Zxx"] = beam.Zxx / 1e3
        df.loc[idx, "Zyy"] = beam.Zyy / 1e3
        df.loc[idx, "rxx"] = beam.rxx / 10
        df.loc[idx, "ryy"] = beam.ryy / 10
    return df

def main(filename: str, output: str | None=None):
    fname = "isections.csv"
    p = Path(filename)

    # Check if file exists
    if not p.is_file():
        raise FileNotFoundError

    # Check that the file is of a valid type, namely CSV or Excel
    if p.suffix.lower() not in [".csv", ".xls", ".xlsx"]:
        raise ValueError(f"Invalid file type {p.suffix}")

    # Call appropriate reading function based on file type
    if p.suffix.lower() == ".csv":
        isec = pd.read_csv(fname)
    else:
        isec = pd.read_excel(fname)
    isec = clean_data(isec)
    print(isec.head())

    # Process the data and round all numerical columns to two decimal places
    isec = process_data(isec).round(2)

    # Display the data if output filename is not specified
    if output is None:
        print(f"\nSection Geometric Properties\n{'='*28}")
        print(isec[["designation", "Ixx", "Iyy", "Zxx", "Zyy", "rxx", "ryy"]].head())
    else:
        pout = Path(output)

        # Do not overwrite an existing file
        if pout.is_file():
            raise FileExistsError

        # Check for a valid output file type, one of CSV or Excel
        if pout.suffix.lower() not in [".csv", ".xlsx", ".xls"]:
            raise ValueError(f"Invalid file type {pout.suffix}")

        print(f"\nSaving data to {output}")
        # Call the appropriate writing function based on file type
        if pout.suffix.lower() == ".csv":
            isec.to_csv(output, index=False, quoting=csv.QUOTE_NONNUMERIC)
        else:
            isec.to_excel(output)


if __name__ == "__main__":
    # fname = "isections.xlsx"
    # main(fname, "isec_geomprop.csv")
    typer.run(main)

You can use the CLI application as follows:

> uv run -- python secprop_app.py --help
> uv run -- python secprop_app.py isections.csv
> uv run -- python secprop_app.py isections.csv --output isec_geomprop.csv
> uv run -- python secprop_app.py isections.xlsx --output isec_geomprop.xlsx

> .venv\Scripts\activate
(.venv) > python secprop_app.py --help
(.venv) > python secprop_app.py isections.csv
(.venv) > python secprop_app.py isections.csv --output isec_geomprop.csv
(.venv) > python secprop_app.py isections.xlsx --output isec_geomprop.xlsx

> .venv/bin/activate
(.venv) > python secprop_app.py --help
(.venv) > python secprop_app.py isections.csv
(.venv) > python secprop_app.py isections.csv --output isec_geomprop.csv
(.venv) > python secprop_app.py isections.xlsx --output isec_geomprop.xlsx

The output of the first command must be as follows:

> uv run -- python secprop_app.py isections.csv
  designation    d    b   t_f  t_w   r_r  r_f  alpha  n_r  area  Ixx  Iyy  Zxx  Zyy  rxx  ryy
0    ISLB 300  300  150   9.4  6.7  15.0  7.5      8   32   0.0  0.0  0.0  0.0  0.0  0.0  0.0
1    ISMB 300  300  140  12.4  7.5  14.0  7.0      8   32   0.0  0.0  0.0  0.0  0.0  0.0  0.0
2    ISMB 450  450  150  17.4  9.4  15.0  7.5      8   32   0.0  0.0  0.0  0.0  0.0  0.0  0.0

Section Geometric Properties
============================
  designation       Ixx     Iyy      Zxx     Zyy    rxx   ryy
0    ISLB 300   7339.16  377.26   482.35   50.30  12.35  2.80
1    ISMB 300   8605.09  453.85   573.67   64.84  12.37  2.84
2    ISMB 450  30393.89  833.92  1350.84  111.19  18.15  3.01

The second command produces the following output on the screen:

> uv run -- python secprop_app.py isections.csv --output isections_geomprop.csv
  designation    d    b   t_f  t_w   r_r  r_f  alpha  n_r  area  Ixx  Iyy  Zxx  Zyy  rxx  ryy
0    ISLB 300  300  150   9.4  6.7  15.0  7.5      8   32   0.0  0.0  0.0  0.0  0.0  0.0  0.0
1    ISMB 300  300  140  12.4  7.5  14.0  7.0      8   32   0.0  0.0  0.0  0.0  0.0  0.0  0.0
2    ISMB 450  450  150  17.4  9.4  15.0  7.5      8   32   0.0  0.0  0.0  0.0  0.0  0.0  0.0

Saving data to isections_geomprop.csv

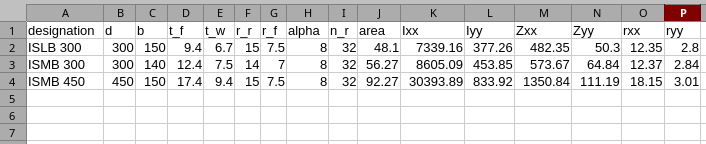

The contents of the output file must be as follows:

"designation","d","b","t_f","t_w","r_r","r_f","alpha","n_r","area","Ixx","Iyy","Zxx","Zyy","rxx","ryy"
"ISLB 300",300,150,9.4,6.7,15.0,7.5,8,32,48.1,7339.16,377.26,482.35,50.3,12.35,2.8
"ISMB 300",300,140,12.4,7.5,14.0,7.0,8,32,56.27,8605.09,453.85,573.67,64.84,12.37,2.84
"ISMB 450",450,150,17.4,9.4,15.0,7.5,8,32,92.27,30393.89,833.92,1350.84,111.19,18.15,3.01
